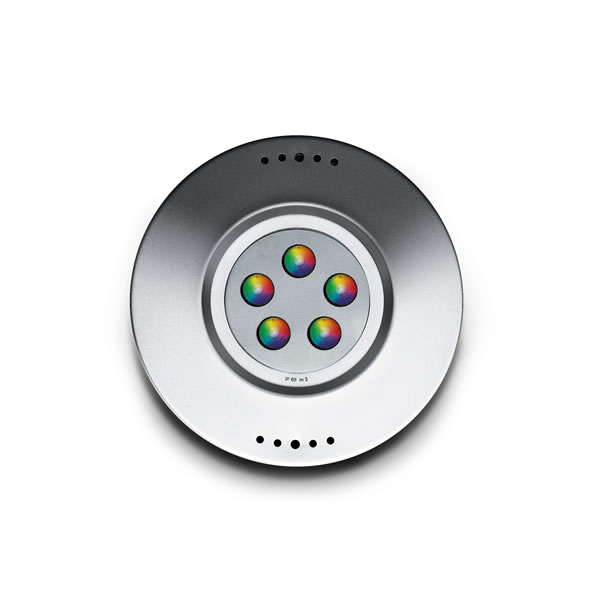

LUMINAIRE TYPE
Submersion luminaire. IP rating IP 68

MATERIAL CHARACTERISTICS
Talc-filled technopolymer housing. Marine grade stainless steel AISI 316L front trim 2 mm thick. Steel screws treated with an advanced anticorrosive coating. Toughened transparent glass 10mm thick MICROPOOL, 12mm thick MINIPOOL/POOL. Mechanical resistance IK 10 Silicone gaskets.

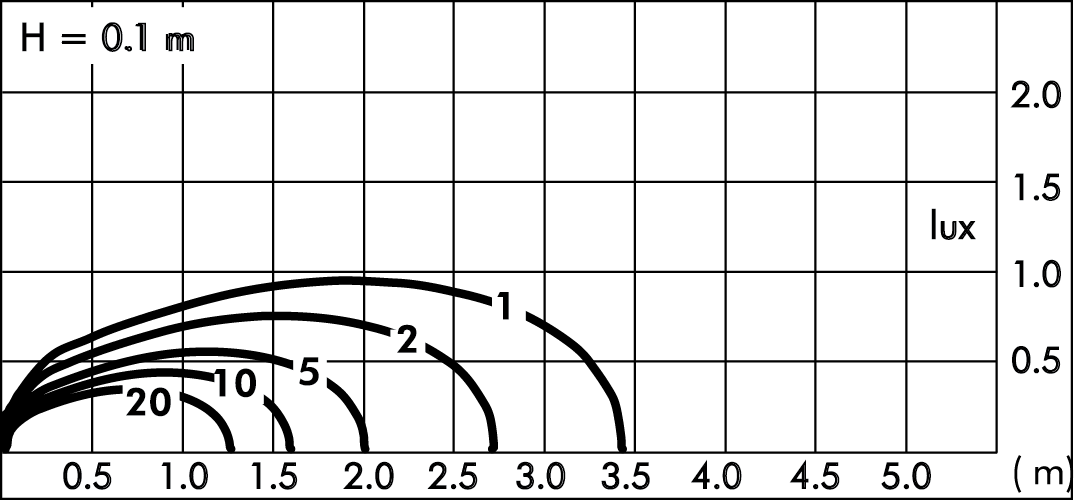

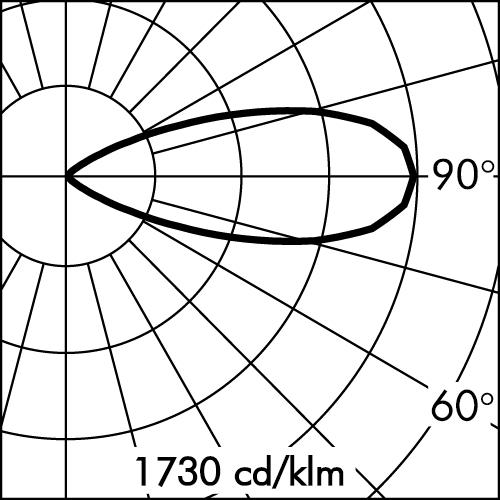

LIGHTING PERFORMANCE
The holes along the ring of the luminaire allow for water circulation and work as an effective cooling system: the water enters the lower holes, circulates inside the recessing box and, once it's heated, it flows out of the upper holes. The spectral distribution of the light is intended to change the appearance of the scene or object lit. Not intended for use in other applications. Lamp fixed position. LOR --

RECESSING BOX
Recessing box in technopolymer with front ring in stainless steel AISI 316L with cable entry on all 4 sides also allows: 1) Easy wiring; 2) Easy access to the fitting for maintenance purposes.

WIRING
Single cable entry with M20 brass cable gland. Luminaire hard wired with 6 m. cable (5 x 1mm²) cable type H07RN8-F for MICROPOOL RGBW, 6 m. cable (5 x 1mm²) cable type H07RN8-F for MINIPOOL RGBW and 8 m. cable (5 x 1mm²) cable type H07RN8-F for POOL RGBW closed by cable gland and sealed with B component epoxy resin, wired internally protected by silicon sheaths Corrugated plastic pipe 5m long for MICROPOOL and MINIPOOL, 7m long for POOL. Isolation: CLASS III . Available colours: Stainless steel (cod.19). Weight: 4.6033 Kg
LED module included
The luminaire cannot be installed out of the water .
Not compatible with pools containing salt water and that are treated with salt water chlorination
Suitable for swimming pools in concrete and metal, recessed to the wall.
POOL REGISTERED DESIGN

This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user.

LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 70.000 hours Ta 25°C, min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

WARRANTY
All items produced from 01/01/2026 onwards are covered by a 5 (five)-year warranty against manufacturing and conformity defects, in accordance with the terms and limits set out in the manufacturer’s official documentation. For full details, exclusions and warranty activation procedures, please refer to the following link: www.simes.it/warranty
