Product overview

Catch

Catch square 4led
Catch square 9led
Catch rectangular 20led
Filters
Rated luminaire luminous flux:
394 lm - 2349 lm X
Colour temperature:
Tipo Control type:
Standard beams:
Number of products found: 72
Reset
dimensions
CATCH SQUARE 4LED
Catch square 4LED aluminium front ring adjustable optic
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.7400N 34° 7.8W 460lm LED 4000K CRI 80 220-240Vac DALI2; PUSH .01.14
S.7400W 34° 7.8W 448lm LED 3000K CRI 90 220-240Vac DALI2; PUSH .01.14
S.7400H 34° 7.8W 425lm LED 2700K CRI 90 220-240Vac DALI2; PUSH .01.14
S.7401N 65° 7.8W 428lm LED 4000K CRI 80 220-240Vac DALI2; PUSH .01.14
S.7401W 65° 7.8W 415lm LED 3000K CRI 90 220-240Vac DALI2; PUSH .01.14
S.7401H 65° 7.8W 394lm LED 2700K CRI 90 220-240Vac DALI2; PUSH .01.14
Beam lenses available on request with no surcharge: 12°, 10°x44°
Colours on request with surchage: .07.09.20.24

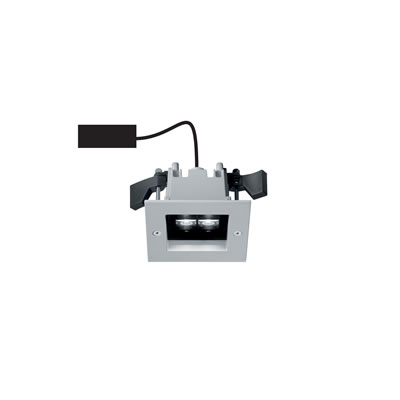

dimensions
CATCH SQUARE 4LED
Catch square 4LED aluminium front ring fixed optic
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.7410N 34° 10.9W 598lm LED 4000K CRI 90 220-240Vac DALI2; PUSH .01.14
S.7410W 34° 10.9W 582lm LED 3000K CRI 90 220-240Vac DALI2; PUSH .01.14
S.7410H 34° 10.9W 552lm LED 2700K CRI 90 220-240Vac DALI2; PUSH .01.14
S.7411N 65° 10.9W 605lm LED 4000K CRI 90 220-240Vac DALI2; PUSH .01.14
S.7411W 65° 10.9W 589lm LED 3000K CRI 90 220-240Vac DALI2; PUSH .01.14
S.7411H 65° 10.9W 559lm LED 2700K CRI 90 220-240Vac DALI2; PUSH .01.14
Beam lenses available on request with no surcharge: 12°, 10°x44°
Colours on request with surchage: .07.09.20.24

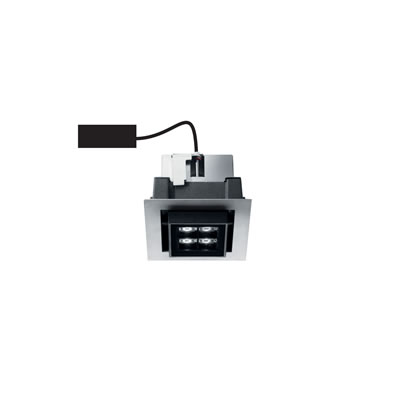

dimensions
CATCH SQUARE 4LED
Catch square 4LED stainless steel front ring adjustable optic
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.7405N 34° 7.8W 460lm LED 4000K CRI 80 220-240Vac DALI2; PUSH .19
S.7405W 34° 7.8W 448lm LED 3000K CRI 90 220-240Vac DALI2; PUSH .19
S.7405H 34° 7.8W 425lm LED 2700K CRI 90 220-240Vac DALI2; PUSH .19
S.7406N 65° 7.8W 428lm LED 4000K CRI 80 220-240Vac DALI2; PUSH .19
S.7406W 65° 7.8W 415lm LED 3000K CRI 90 220-240Vac DALI2; PUSH .19
S.7406H 65° 7.8W 394lm LED 2700K CRI 90 220-240Vac DALI2; PUSH .19
Beam lenses available on request with no surcharge: 12°, 10°x44°

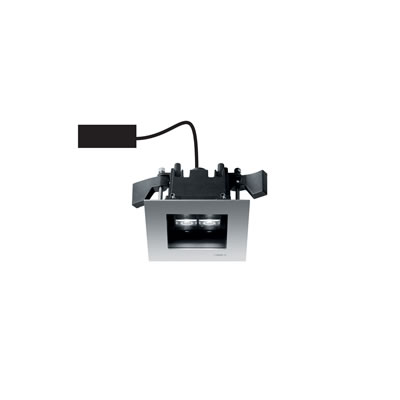

dimensions
CATCH SQUARE 4LED
Catch square 4LED stainless steel front ring fixed optic
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.7415N 34° 10.9W 598lm LED 4000K CRI 90 220-240Vac DALI2; PUSH .19
S.7415W 34° 10.9W 582lm LED 3000K CRI 90 220-240Vac DALI2; PUSH .19
S.7415H 34° 10.9W 552lm LED 2700K CRI 90 220-240Vac DALI2; PUSH .19
S.7416N 65° 10.9W 605lm LED 4000K CRI 90 220-240Vac DALI2; PUSH .19
S.7416W 65° 10.9W 589lm LED 3000K CRI 90 220-240Vac DALI2; PUSH .19
S.7416H 65° 10.9W 559lm LED 2700K CRI 90 220-240Vac DALI2; PUSH .19
Beam lenses available on request with no surcharge: 12°, 10°x44°
dimensions
CATCH SQUARE 9LED
Catch square 9LED aluminium front ring adjustable optic
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.7420N 34° 14.9W 1014lm LED 4000K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) .01.14
S.7420W 34° 14.9W 985lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .01.14
S.7420H 34° 14.9W 935lm LED 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .01.14
S.7421N 63° 14.9W 784lm LED 4000K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) .01.14
S.7421W 63° 14.9W 761lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .01.14
S.7421H 63° 14.9W 722lm LED 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .01.14
Beam lenses available on request with no surcharge: 12°, 10°x44°
Colours on request with surchage: .07.09.20.24

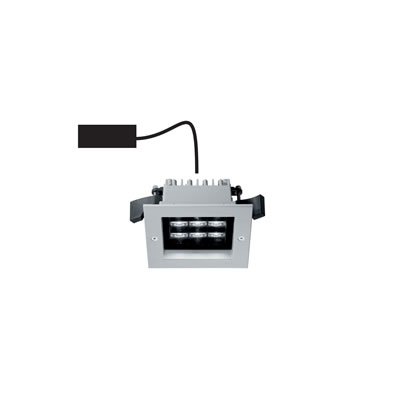

dimensions
CATCH SQUARE 9LED
Catch square 9LED aluminium front ring fixed optic
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.7430N 34° 21.7W 1369lm LED 4000K CRI 90 220-240Vac DALI2; PUSH .01.14
S.7430W 34° 21.7W 1329lm LED 3000K CRI 90 220-240Vac DALI2; PUSH .01.14
S.7430H 34° 21.7W 1262lm LED 2700K CRI 90 220-240Vac DALI2; PUSH .01.14
S.7431N 63° 21.7W 1058lm LED 4000K CRI 90 220-240Vac DALI2; PUSH .01.14
S.7431W 63° 21.7W 1027lm LED 3000K CRI 90 220-240Vac DALI2; PUSH .01.14
S.7431H 63° 21.7W 975lm LED 2700K CRI 90 220-240Vac DALI2; PUSH .01.14
Beam lenses available on request with no surcharge: 12°, 10°x44°
Colours on request with surchage: .07.09.20.24

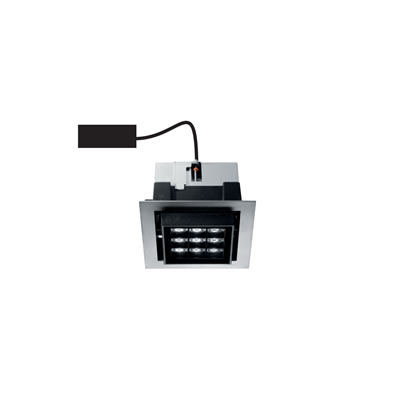

dimensions
CATCH SQUARE 9LED
Catch square 9LED stainless steel front ring adjustable optic
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.7425N 34° 14.9W 1014lm LED 4000K CRI 80 220-240Vac DALI2; PUSH .19
S.7425W 34° 14.9W 985lm LED 3000K CRI 90 220-240Vac DALI2; PUSH .19
S.7425H 34° 14.9W 935lm LED 2700K CRI 90 220-240Vac DALI2; PUSH .19
S.7426N 63° 14.9W 784lm LED 4000K CRI 80 220-240Vac DALI2; PUSH .19
S.7426W 63° 14.9W 761lm LED 3000K CRI 90 220-240Vac DALI2; PUSH .19
S.7426H 63° 14.9W 722lm LED 2700K CRI 90 220-240Vac DALI2; PUSH .19
Beam lenses available on request with no surcharge: 12°, 10°x44°

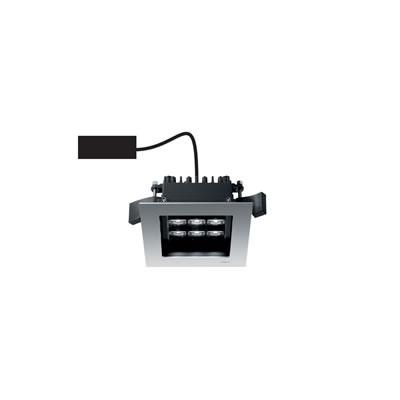

dimensions
CATCH SQUARE 9LED
Catch square 9LED stainless steel front ring fixed optic
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.7435N 34° 21.7W 1369lm LED 4000K CRI 90 220-240Vac DALI2; PUSH .19
S.7435W 34° 21.7W 1329lm LED 3000K CRI 90 220-240Vac DALI2; PUSH .19
S.7435H 34° 21.7W 1262lm LED 2700K CRI 90 220-240Vac DALI2; PUSH .19
S.7436N 63° 21.7W 1058lm LED 4000K CRI 90 220-240Vac DALI2; PUSH .19
S.7436W 63° 21.7W 1027lm LED 3000K CRI 90 220-240Vac DALI2; PUSH .19
S.7436H 63° 21.7W 975lm LED 2700K CRI 90 220-240Vac DALI2; PUSH .19
Beam lenses available on request with no surcharge: 12°, 10°x44°
dimensions
CATCH RECTANGULAR 20LED
Catch rectangulaire aluminium front ring adjustable optic
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.7460N 34° 32W 2349lm LED 4000K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) .01.14
S.7460W 34° 32W 2281lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .01.14
S.7460H 34° 32W 2166lm LED 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .01.14
S.7461N 63° 32W 1869lm LED 4000K CRI 80 220-240Vac NOT DIMMABLE (ON-OFF) .01.14
S.7461W 63° 32W 1815lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .01.14
S.7461H 63° 32W 1724lm LED 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .01.14
Beam lenses available on request with no surcharge: 12°, 10°x44°
Colours on request with surchage: .07.09.20.24
dimensions
CATCH RECTANGULAR 20LED
Catch rectangulaire aluminium front ring fixed optic
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.7470N 34° 32W 2349lm LED 4000K CRI 80 220-240Vac DALI2; PUSH .01.14
S.7470W 34° 32W 2281lm LED 3000K CRI 90 220-240Vac DALI2; PUSH .01.14
S.7470H 34° 32W 2166lm LED 2700K CRI 90 220-240Vac DALI2; PUSH .01.14
S.7471N 63° 32W 1869lm LED 4000K CRI 80 220-240Vac DALI2; PUSH .01.14
S.7471W 63° 32W 1815lm LED 3000K CRI 90 220-240Vac DALI2; PUSH .01.14
S.7471H 63° 32W 1724lm LED 2700K CRI 90 220-240Vac DALI2; PUSH .01.14
Beam lenses available on request with no surcharge: 12°, 10°x44°
Colours on request with surchage: .07.09.20.24

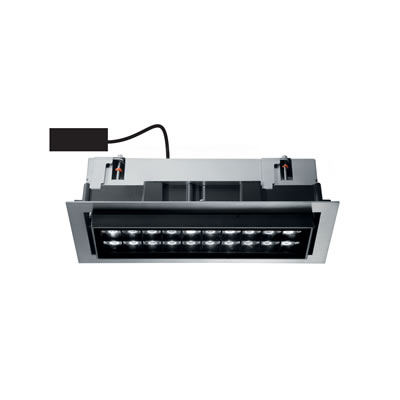

dimensions
CATCH RECTANGULAR 20LED
Catch rectangulaire stainless steel front ring adjustable optic
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.7465N 34° 32W 2349lm LED 4000K CRI 80 220-240Vac DALI2; PUSH .19
S.7466W 63° 32W 1815lm LED 3000K CRI 90 220-240Vac DALI2; PUSH .19
S.7466H 63° 32W 1724lm LED 2700K CRI 90 220-240Vac DALI2; PUSH .19
S.7466N 63° 32W 1869lm LED 4000K CRI 80 220-240Vac DALI2; PUSH .19
S.7465W 34° 32W 2281lm LED 3000K CRI 90 220-240Vac DALI2; PUSH .19
S.7465H 34° 32W 2166lm LED 2700K CRI 90 220-240Vac DALI2; PUSH .19
Beam lenses available on request with no surcharge: 12°, 10°x44°

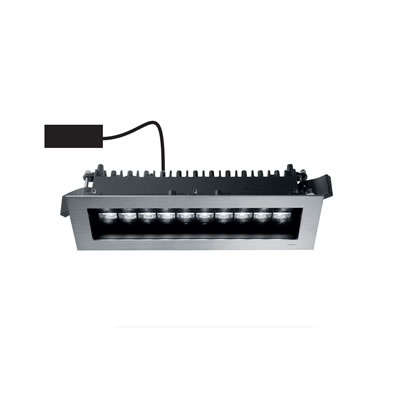

dimensions
CATCH RECTANGULAR 20LED
Catch rectangulaire stainless steel front ring fixed optic
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.7475N 34° 32W 2349lm LED 4000K CRI 80 220-240Vac DALI2; PUSH .19
S.7475W 34° 32W 2281lm LED 3000K CRI 90 220-240Vac DALI2; PUSH .19
S.7475H 34° 32W 2166lm LED 2700K CRI 90 220-240Vac DALI2; PUSH .19
S.7476N 63° 32W 1869lm LED 4000K CRI 80 220-240Vac DALI2; PUSH .19
S.7476W 63° 32W 1815lm LED 3000K CRI 90 220-240Vac DALI2; PUSH .19
S.7476H 63° 32W 1724lm LED 2700K CRI 90 220-240Vac DALI2; PUSH .19
Beam lenses available on request with no surcharge: 12°, 10°x44°
