Outline pole mounted
Rated luminaire luminous flux:
3965 lm - 4888 lm
X
Colour temperature:
Standard beams:
Standard colours:
Number of products found: 9

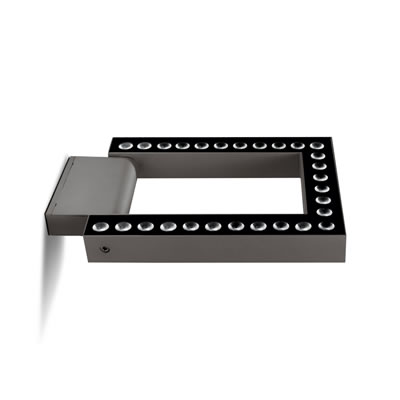

OUTLINE SPOT
This code can be installed as Outline pole mounted only using the appropriate acessories
| Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
|---|---|---|---|---|---|---|---|---|
| S.3100N |  |
10° | 61W | 4888lm | LED 4000K CRI 80 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .14.24 |
| S.3100W | |
10° | 61W | 4461lm | LED 3000K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .14.24 |
| S.3100H | |
10° | 61W | 4237lm | LED 2700K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .14.24 |
| S.3101N |  |
29° | 61W | 4732lm | LED 4000K CRI 80 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .14.24 |
| S.3101W | |
29° | 61W | 4336lm | LED 3000K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .14.24 |
| S.3101H | |
29° | 61W | 4119lm | LED 2700K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .14.24 |
Beam lenses available on request with no surcharge: 42°
Colours on request with surchage: .01.07.09.20

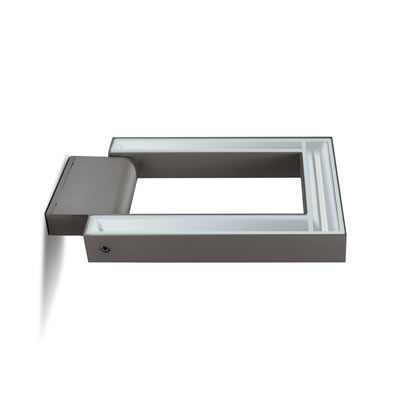

OUTLINE FLOOD
This code can be installed as Outline pole mounted only using the appropriate acessories
| Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
|---|---|---|---|---|---|---|---|---|
| S.3105N |  |
91°x116° | 46W | 4540lm | LED 4000K CRI 80 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .14.24 |
| S.3105W | |
91°x116° | 46W | 4186lm | LED 3000K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .14.24 |
| S.3105H | |
91°x116° | 46W | 3965lm | LED 2700K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .14.24 |
Colours on request with surchage: .01.07.09.20
The range
OUTLINE POLE MOUNTED is available in different versions and applications.
Access to the code list of the type of your interest.
Access to the code list of the type of your interest.
