Plan
Rated luminaire luminous flux:
71 lm - 1026 lm
X
Colour temperature:
Standard beams:
Standard colours:
Number of products found: 30
MINIPLAN HORIZONTAL SINGLE EMISSION
| Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
|---|---|---|---|---|---|---|---|---|
| S.3883N |  |
12.5W | 596lm | LED 4000K CRI 80 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14 | |
| S.3883W | |
12.5W | 568lm | LED 3000K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14 | |
| S.3883H | |
12.5W | 539lm | LED 2700K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14 |
Colours on request with surchage: .07.09.20.24
MINIPLAN HORIZONTAL DOUBLE EMISSION
| Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
|---|---|---|---|---|---|---|---|---|
| S.3884N |  |
12.5W | 585lm | LED 4000K CRI 80 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14 | |
| S.3884W | |
12.5W | 557lm | LED 3000K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14 | |
| S.3884H | |
12.5W | 529lm | LED 2700K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14 |
Colours on request with surchage: .07.09.20.24
PLAN HORIZONTAL SINGLE EMISSION
| Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
|---|---|---|---|---|---|---|---|---|
| S.3893N | |
18.7W | 990lm | LED 4000K CRI 80 | 220-240Vac | -- | .01.14 | |
| S.3893W | |
18.7W | 943lm | LED 3000K CRI 90 | 220-240Vac | -- | .01.14 | |
| S.3893H | |
18.7W | 895lm | LED 2700K CRI 90 | 220-240Vac | -- | .01.14 |
Colours on request with surchage: .07.09.20.24
PLAN HORIZONTAL DOUBLE EMISSION
| Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
|---|---|---|---|---|---|---|---|---|
| S.3894N | |
18.7W | 944lm | LED 4000K CRI 80 | 220-240Vac | -- | .01.14 | |
| S.3894W | |
18.7W | 899lm | LED 3000K CRI 90 | 220-240Vac | -- | .01.14 | |
| S.3894H | |
18.7W | 854lm | LED 2700K CRI 90 | 220-240Vac | -- | .01.14 |
Colours on request with surchage: .07.09.20.24

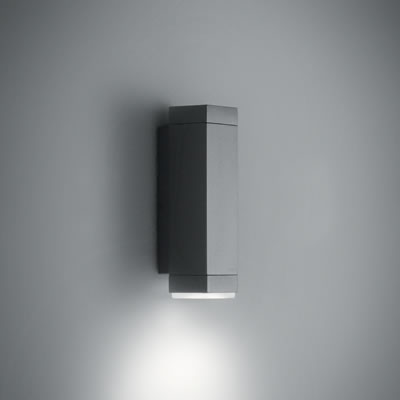

PLAN VERTICAL 60 SINGLE EMISSION
| Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
|---|---|---|---|---|---|---|---|---|
| S.3875N |  |
78° | 4W | 81lm | LED 4000K CRI 80 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.20 |
| S.3875W | |
78° | 4W | 75lm | LED 3000K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.20 |
| S.3875H | |
78° | 4W | 71lm | LED 2700K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.20 |
Colours on request with surchage: .07.09.24

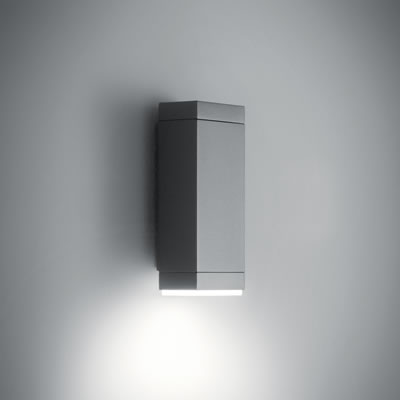

PLAN VERTICAL 90 SINGLE EMISSION
| Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
|---|---|---|---|---|---|---|---|---|
| S.3885N | |
83° | 10W | 268lm | LED 4000K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.20 |
| S.3885W | |
83° | 10W | 248lm | LED 3000K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.20 |
| S.3885H | |
83° | 10W | 235lm | LED 2700K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.20 |
Colours on request with surchage: .07.09.24

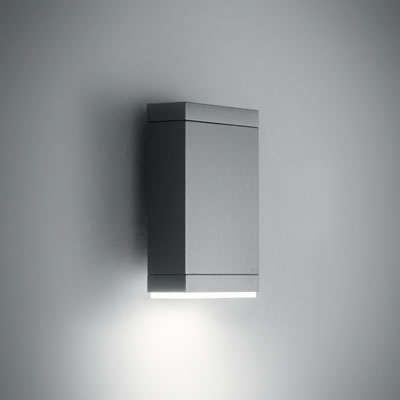

PLAN VERTICAL 140 SINGLE EMISSION
| Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
|---|---|---|---|---|---|---|---|---|
| S.3895N | |
87° | 16W | 513lm | LED 4000K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.20 |
| S.3895W | |
87° | 16W | 475lm | LED 3000K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.20 |
| S.3895H | |
87° | 16W | 451lm | LED 2700K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.20 |
Colours on request with surchage: .07.09.24

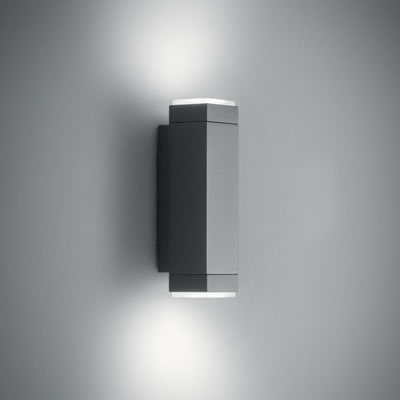

PLAN VERTICAL 60 DOUBLE EMISSION
| Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
|---|---|---|---|---|---|---|---|---|
| S.3877N |  |
78° | 6W | 162lm | LED 4000K CRI 80 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.20 |
| S.3877W | |
78° | 6W | 150lm | LED 3000K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.20 |
| S.3877H | |
78° | 6W | 142lm | LED 2700K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.20 |
Colours on request with surchage: .07.09.24

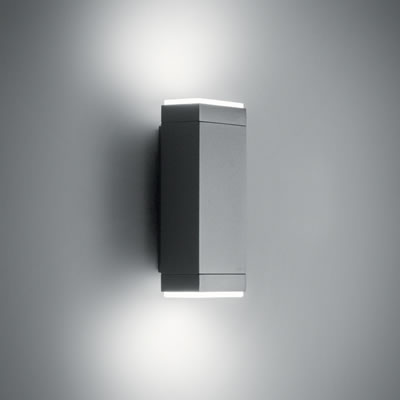

PLAN VERTICAL 90 DOUBLE EMISSION
| Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
|---|---|---|---|---|---|---|---|---|
| S.3887N | |
83° | 18.2W | 536lm | LED 4000K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.20 |
| S.3887W | |
83° | 18.2W | 496lm | LED 3000K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.20 |
| S.3887H | |
83° | 18.2W | 471lm | LED 2700K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.20 |
Colours on request with surchage: .07.09.24

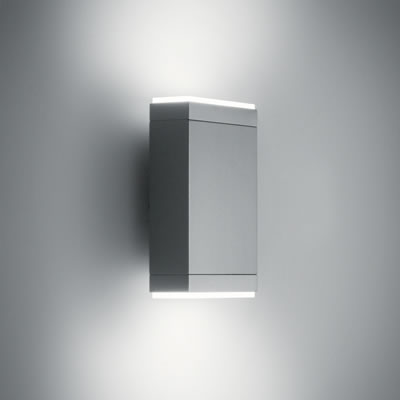

PLAN VERTICAL 140 DOUBLE EMISSION
| Code | Beam | Optic | Power | Rated luminaire luminous flux | Light source type | Power supply | Dimming type | Colour standard |
|---|---|---|---|---|---|---|---|---|
| S.3897N | |
87° | 29.7W | 1026lm | LED 4000K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.20 |
| S.3897W | |
87° | 29.7W | 950lm | LED 3000K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.20 |
| S.3897H | |
87° | 29.7W | 902lm | LED 2700K CRI 90 | 220-240Vac | NOT DIMMABLE (ON-OFF) | .01.14.20 |
Colours on request with surchage: .07.09.24
