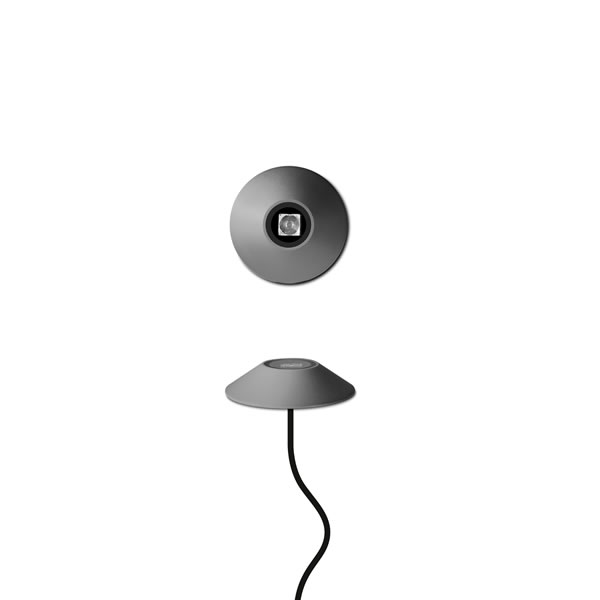

LUMINAIRE TYPE
Surface mounted up-light fitting . IP rating IP 65 IP67

MATERIAL CHARACTERISTICS
Die cast EN AB-44300 aluminium (low copper content) housing with high corrosion resistance. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Mechanical resistance IK 08 Maximum load capacity --

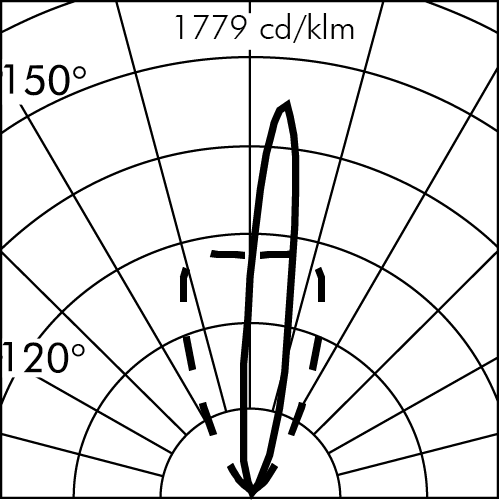

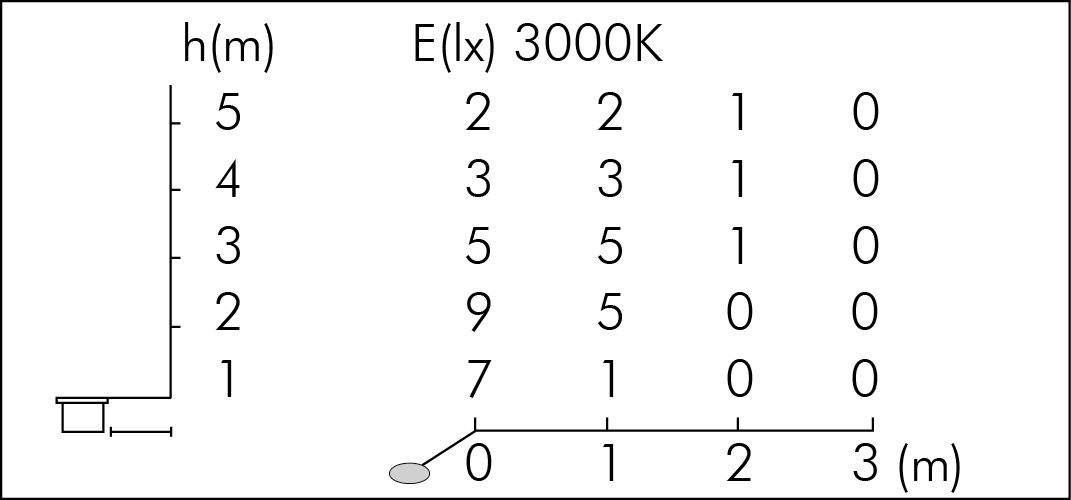

LIGHTING PERFORMANCE
Clear polycarbonate lenses. Toughened glass 5mm Micro Over-all, 6mm Mini Over-all, 8mm Over-all. Lamp fixed position. LOR --

LOW SURFACE TEMPERATURE
Surface temperature of glass -- (Ta 25°C)

INSTALLATION AND MAINTENANCE
A4 stainless steel fixing clips. Over-all is supplied with a nylon insulating fixing base and 2 special keys (necessary to remove the luminaire). Allowing direct fixation to the solid ground.

WIRING
Supply 5m cable section type H05RN-F sealed with B component epoxy resin, wired internally protected by silicon sheaths. Isolation: CLASS III . Available colours: Aluminium grey (cod.14), Anthracite grey (cod.24). Weight: 0.911 Kg Glow Wire test: --
LED module included

OVER-ALL REGISTERED DESIGN

This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user.

This product contains a light source of energy efficiency class (EPREL - European Product Registry for Energy Labelling): E.

LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 70.000 hours Ta 25°C, min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.
