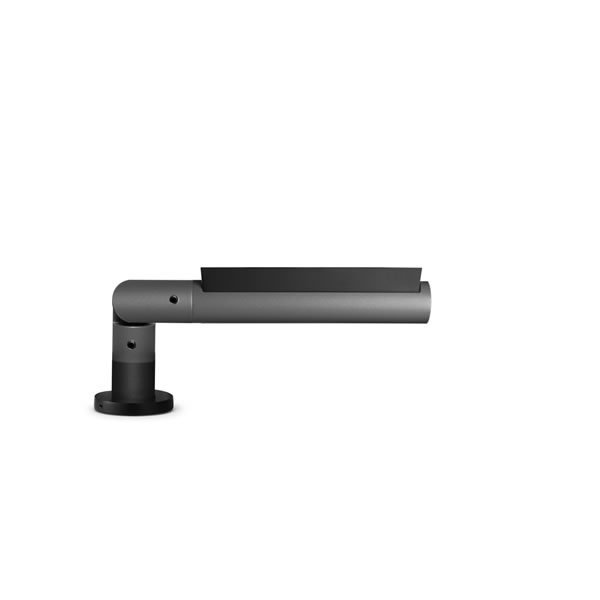

Code S.1761W PIVOT 7 LED 850mA|Simes S.p.A.

S.1761N

S.1761H

Technical data


dimensions

Anthracite Grey

Detailed technical drawing

.24

PRODUCT DESCRIPTION

LUMINAIRE TYPE
Projector. IP rating IP 66

MATERIAL CHARACTERISTICS
Die-cast EN AB-47100 aluminium housing with high corrosion resistance. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Silicone gaskets. Painting Process : 3 Step Process
1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h.
Available colours: Anthracite grey (cod.24) Luminaires with other color finishes on request (with surcharge), the visor will always keep the black colour: this is necessary for lighting engineering reasons, in order not to have a color change and/or alteration of the light colour.
Mechanical resistance IK 07

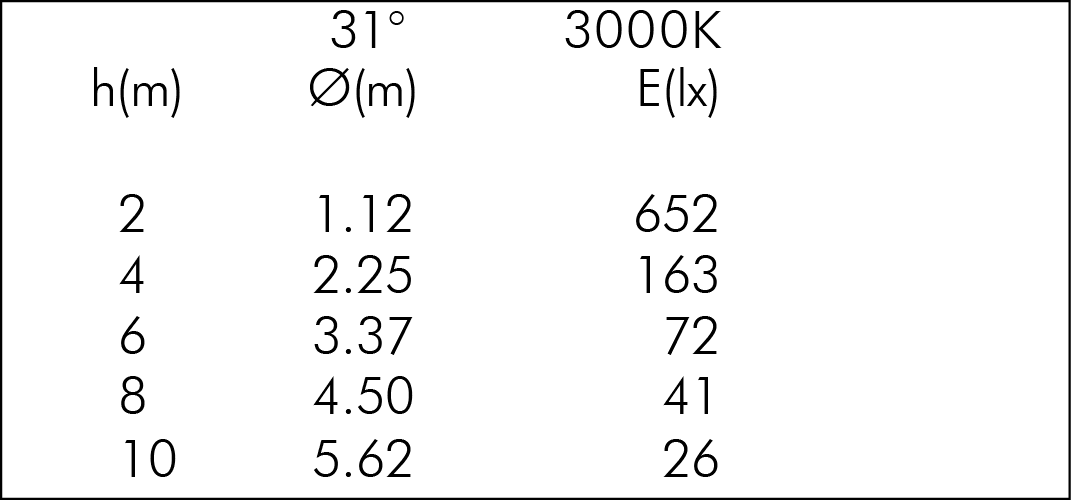

LIGHTING PERFORMANCE
The sophisticated optics focuses the beam and makes the light comfortable by reducing the direct glare of the light source. Clear toughened glass. LOR --

INSTALLATION AND MAINTENANCE
The tempered front glass diffuser is fixed externally to the fitting through silicon resin, perfectly flush with the front ring. Water and dirt deposits that can disturb the lighting performance of the projector can easily flow away.

WIRING
Supply 5m cable section type FEP/FEP + PCP (Pivot) or FLAT (Pivot 230V) sealed with B component epoxy resin, wired internally protected by silicon sheaths. Isolation: CLASS III . Weight: 1.6104 Kg Glow Wire test: --
LED module included

PIVOT PATENTED, REGISTERED DESIGN

This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user.

This product contains a light source of energy efficiency class (EPREL - European Product Registry for Energy Labelling): G.

LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 70.000 hours Ta 25°C, min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

PIVOT 7 LED 850mA

Art. S.1761W

7 MODULE LED 3000K

Light Source Technical Data

Light source type:	LED
Colour temperature:	3000K
Rated module luminous flux:	1530lm
Rated luminaire luminous flux:	798lm
Rated module power:	16.4W
Rated luminaire power:	18.6W
Luminaire efficacy:	43lm/W
ULR:	0%
Color Rendering Index:	CRI 90
Standard Deviation Color Matching:	MacAdam step 3

Power Supply Technical Data

Current : See the SIMES power supply accessories list on the following pages NB: Use 1 Power Supply for each Luminaires	Max. 850mA Vfmin=17.5Vdc Vfmax=24.5Vdc

Temperature and life time Technical Data

LED Lifetime:	L80 B10 70.000h Ta 25°C L80 B10 50.000h Ta 40°C
Lifespan of the LUMINAIRE:	min. 70.000h Ta 25°C min. 50.000h Ta 40°C
Performance ambient temperature:	Tq 25°C
Operating ambient temperature range:	da -20°C a +50°C
Storage temperature range:	da -20°C a +60°C

Technical Installation Data

Electrical insulation class:	III
Protection class IP:	IP66
Mechanical resistance:	IK07
Weight:	1.6104Kg
Exposed windage area:	0.016m²
Power cable:	5m - FLAT

This code can be installed as Pivot pole mounted only using the appropriate acessories

+ NEEDED ACCESSORIES FOR PIVOT POLE MOUNTED (9)

Pole adaptor

S.1758
FLANGE FOR POLE 60/76mm INSTALLATION

Die-cast aluminium flange suitable only for Ø60mm/ Ø76mm poles.

Poles Recessed

S.2800
H 2,5m Ø60mm CYLINDRICAL POLE TO BE BURIED

Cylindrical shaped poles consisting of: straight circular section shaft, Ø 60mm, 3mm in thickness, total length 3,00m, single section built by using longitudinally welded tubes by induction welding (ERW) UNI EN 10219-2-ISO 4200

Suitable for ground recessed installation to a cement base 0,50m: Suggested reinforced concrete footstall dimension 1,0m x 1,0m h 0,7m. Footstall dimension can be calculated according to your country norms and ground properties.

The grade of steel used is S235JR (Fe360B) with material characteristics as per normative UNI EN 10025;

Painting Process: PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1500h.

S.2812
H 3,0m Ø76mm CYLINDRICAL POLE TO BE BURIED

Cylindrical shaped poles consisting of: straight circular section shaft, Ø 76mm, 3mm in thickness, total length 3,50m, single section built by using longitudinally welded tubes by induction welding (ERW) UNI EN 10219-2-ISO 4200

The grade of steel used is S235JR (Fe360B) with material characteristics as per normative UNI EN 10025;

Including inspection door, terminal cable block and fuse.

S.2842
H 3,5m Ø60mm CYLINDRICAL POLE TO BE BURIED

Cylindrical shaped poles consisting of: straight circular section shaft, Ø 60mm, 4mm in thickness, total length 4,00m , single section built by using longitudinally welded tubes by induction welding (ERW) UNI EN 10219-2-ISO 4200

Suitable for ground recessed installation to a cement base 0,50m : Suggested reinforced concrete footstall dimension 1,0m x 1,0m h 0,7m. Footstall dimension can be calculated according to your country norms and ground properties.

The grade of steel used is S235JR (Fe360B) with material characteristics as per normative UNI EN 10025;

The surface protection treatment is done through hot dip galvanization.

S.2844
H 4,5m Ø76mm CYLINDRICAL POLE TO BE BURIED

Cylindrical shaped poles consisting of: straight circular section shaft, Ø 76mm, 4mm in thickness, total length 5,00m , single section built by using longitudinally welded tubes by induction welding (ERW) UNI EN 10219-2-ISO 4200

Suitable for ground recessed installation to a cement base 0,5m : Suggested reinforced concrete footstall dimension 1,0m x 1,0m h 0,7m. Footstall dimension can be calculated according to your country norms and ground properties.

The grade of steel used is S235JR (Fe360B) with material characteristics as per normative UNI EN 10025;

The surface protection treatment is done through hot dip galvanization.

Including inspection door, terminal cable block and fuse.

Poles With flange

S.2801
H 2,5m Ø60mm CYLINDRICAL POLE WITH BASE

Cylindrical shaped poles consisting of: straight circular section shaft, Ø 60mm, 3mm in thickness, total length 2,50m , single section built by using longitudinally welded tubes by induction welding (ERW) UNI EN 10219-2-ISO 4200

Suitable for installation to a planted root flange through a base plate 250mm x250mm x12mm in steel S355JO : Suggested reinforced concrete footstall dimension 1m x 1m h 0,7m. Footstall dimension can be calculated according to your country norms and ground properties.

The grade of steel used is S235JR (Fe360B) with material characteristics as per normative UNI EN 10025;

The surface protection treatment is done through hot dip galvanization.

S.2813
H 3,0m Ø76mm CYLINDRICAL POLE WITH BASE

Cylindrical shaped poles consisting of: straight circular section shaft, Ø 76mm, 3mm in thickness, total length 3,00m , single section built by using longitudinally welded tubes by induction welding (ERW) UNI EN 10219-2-ISO 4200

The grade of steel used is S235JR (Fe360B) with material characteristics as per normative UNI EN 10025;

The surface protection treatment is done through hot dip galvanization.

Including inspection door, terminal cable block and fuse.

S.2843
H 3,5m Ø60mm CYLINDRICAL POLE WITH BASE

Cylindrical shaped poles consisting of: straight circular section shaft, Ø 60mm, 4mm in thickness, total length 3,50m , single section built by using longitudinally welded tubes by induction welding (ERW) UNI EN 10219-2-ISO 4200

Suitable for installation to a planted root flange through a base plate in steel S355JO Footstall dimension can be calculated according to your country norms and ground properties.

The grade of steel used is S235JR (Fe360B) with material characteristics as per normative UNI EN 10025;

The surface protection treatment is done through hot dip galvanization.

S.2845
H 4,5m Ø76mm CYLINDRICAL POLE WITH BASE

Cylindrical shaped poles consisting of: straight circular section shaft, Ø 76mm, 4mm in thickness, total length 4,50m , single section built by using longitudinally welded tubes by induction welding (ERW) UNI EN 10219-2-ISO 4200

Suitable for installation to a planted root flange through a base plate in steel S355JO Footstall dimension can be calculated according to your country norms and ground properties.

The grade of steel used is S235JR (Fe360B) with material characteristics as per normative UNI EN 10025;

The surface protection treatment is done through hot dip galvanization.

Including inspection door, terminal cable block and fuse.

Documentation

mounting instruction sheet

Conformity Declaration

Design tools

Professional tools only for registered users Register here

2D and 3D models

BIM

2D model

.DXF

Archicad

.LCF

3D model

.3DS

Revit

.RFA+TXT

3D model for 3D Studio Max

.MAX

SketchUp

LIGHT CALCULATION

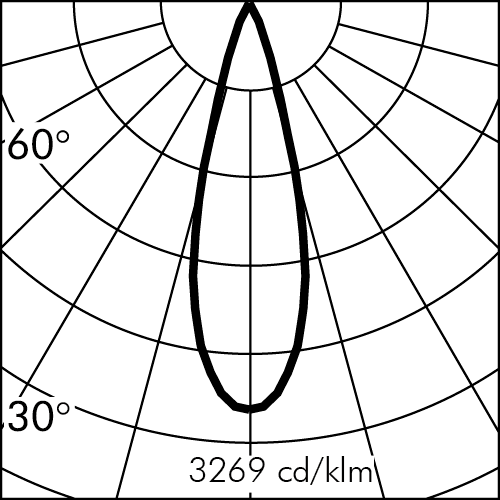

PHOTOMETRIES

DiaLUX

Ies

.IES

Relux

Elumdat

.LDT

DOWNLOAD

loading zip file ...

Accessories

Current not dimmable

S.2408
POWER SUPPLY NOT DIMMABLE MULTI-POWER 230V/350mA-1050mA 57,8W IP67

Maximum power consumption 57,8W Dimensions 185mmx35mmx35mm IP67 CLASS II SELV Warning!!! Always check the minimum Forward voltage (Vf min) of the fixtures that will be connected to this driver.

S.2431
POWER SUPPLY NOT DIMMABLE MULTI-POWER 230V/350mA-1050mA 39W IP20

Maximum power consumption 39W Dimensions 130mmx67mmx21mm IP20 CLASS II SELV Warning!!! Always check the minimum Forward voltage (Vf min) of the fixtures that will be connected to this driver.

S.2432
POWER SUPPLY NOT DIMMABLE MULTI-POWER 230V/350mA-1050mA 50W IP20

Maximum power consumption 50W Dimensions 130mmx67mmx21mm IP20 CLASS II SELV Warning!!! Always check the minimum Forward voltage (Vf min) of the fixtures that will be connected to this driver.

S.2436
POWER SUPPLY NOT DIMMABLE MULTI-POWER 230V/350mA-1050mA 50W IN BOX IP55 MAX 5 OUTPUTS

Maximum power consumption 50W Dimensions 260mmx260mmx100mm IP55 CLASS II SELV Warning!!! Always check the minimum Forward voltage (Vf min) of the fixtures that will be connected to this driver.

Current dali dimmable

S.2410
POWER SUPPLY DALI2 230V/350-1050mA 57,8W IP67

230V/350-1050mA Maximum power consumption: 57,8W Dimensions 185mmx35mmx35mm IP67 SELV CLASS II Warning!!! Always check the minimum Forward voltage (Vf min) of the fixtures that will be connected to this driver.

S.2413
POWER SUPPLY DALI / 1-10V / PUSH MULTI-POWER 230V/250mA-700mA IP20

230V/250mA-700mA Maximum power consumption: @250mA 28W, … ,@700mA 60W. Dimensions 124mmx79mmx22mm IP20 Warning!!! Always check the minimum Forward voltage (Vf min) of the fixtures that will be connected to this driver.

S.2437
POWER SUPPLY MULTI-POWER 230V/350mA-1050mA DALI DIMMABLE, 1-10V, PUSH DIM IN BOX IP55 60W MAX 5 OUTPUTS

230V/350mA-1050mA Maximum power consumption: 60W Dimensions 260mmx260mmx100mm IP55 CLASS II SELV 120V Warning!!! Always check the minimum Forward voltage (Vf min) of the fixtures that will be connected to this driver.

S.2444
POWER SUPPLY MULTI-POWER 230V/700mA-1050mA DALI2, PUSH DIM IN BOX IP67 35W

230V/700mA-1050mA Maximum power consumption: 35W Dimensions 175,5mmx86,5mmx43mm IP67 CLASS II SELV Warning!!! Always check the minimum Forward voltage (Vf min) of the fixtures that will be connected to this driver.

S.3427
POWER SUPPLY Dali, 1-10V, PUSH MULTI-POWER 230V/350mA-1050mA IP20

Dali, Dimmable 1-10V, PUSH BOTTON 230V/350mA-1050mA Maximum power consumption: @350mA 25W, @500mA 35W, @550mA 39W, @650mA 46W, @700-1050mA 50W. Dimensions 125mmx80mmx20mm IP20 SELV 120V Warning!!! Always check the minimum Forward voltage (Vf min) of the fixtures that will be connected to this driver.

Current phase-cut dimmable

S.2412
POWER SUPPLY 1-10V / PUSH MULTI-POWER 230V/250mA-900mA IP20

230V/250mA-900mA Maximum power consumption: @250mA 13W, … ,@900mA 20W. Dimensions 136mmx42mmx24mm IP20 Warning!!! Always check the minimum Forward voltage (Vf min) of the fixtures that will be connected to this driver.

S.2417
POWER SUPPLY DALI2 / PUSH MULTI-POWER 230V/100mA-800mA IP20

230V/100mA-800mA Maximum power consumption: @100mA 5,8W, ..., @800mA 23,5W. Dimensions 110mmx40mmx21mm IP20 Warning!!! Always check the minimum Forward voltage (Vf min) of the fixtures that will be connected to this driver.

S.2418
POWER SUPPLY DALI2 / PUSH MULTI-POWER 230V/700mA-1050mA IP20

230V/700mA-1050mA Maximum power consumption: @700mA 28W, …, @1050mA 34,7W. Dimensions 136mmx42mmx24mm IP20 Warning!!! Always check the minimum Forward voltage (Vf min) of the fixtures that will be connected to this driver.

Current 1-10V dimmable

S.3423
POWER SUPPLY MULTI-POWER 230V/350mA-1050mA IP20

Dimmable 1-10V, PUSH BOTTON Maximum power consumption: @350mA 15W, @500mA 21W, @550mA 23W, @650mA 27W, @700mA 29W, @750mA 31W, @850mA 35W, @900mA 37W, @1050mA 39W Dimensions 130mmx67mmx21mm IP20 For easy installation we recommend the wiring of maximum 2 devices in series to each power supply. Warning!!! Always check the minimum Forward voltage (Vf min) of the fixtures that will be connected to this driver.

Recessed

S.2800
H 2,5m Ø60mm CYLINDRICAL POLE TO BE BURIED

The grade of steel used is S235JR (Fe360B) with material characteristics as per normative UNI EN 10025;

S.2812
H 3,0m Ø76mm CYLINDRICAL POLE TO BE BURIED

The grade of steel used is S235JR (Fe360B) with material characteristics as per normative UNI EN 10025;

Including inspection door, terminal cable block and fuse.

S.2842
H 3,5m Ø60mm CYLINDRICAL POLE TO BE BURIED

Suitable for ground recessed installation to a cement base 0,50m : Suggested reinforced concrete footstall dimension 1,0m x 1,0m h 0,7m. Footstall dimension can be calculated according to your country norms and ground properties.

The grade of steel used is S235JR (Fe360B) with material characteristics as per normative UNI EN 10025;

The surface protection treatment is done through hot dip galvanization.

S.2844
H 4,5m Ø76mm CYLINDRICAL POLE TO BE BURIED

The grade of steel used is S235JR (Fe360B) with material characteristics as per normative UNI EN 10025;

The surface protection treatment is done through hot dip galvanization.

Including inspection door, terminal cable block and fuse.

With flange

S.2801
H 2,5m Ø60mm CYLINDRICAL POLE WITH BASE

The grade of steel used is S235JR (Fe360B) with material characteristics as per normative UNI EN 10025;

The surface protection treatment is done through hot dip galvanization.

S.2813
H 3,0m Ø76mm CYLINDRICAL POLE WITH BASE

The grade of steel used is S235JR (Fe360B) with material characteristics as per normative UNI EN 10025;

The surface protection treatment is done through hot dip galvanization.

Including inspection door, terminal cable block and fuse.

S.2843
H 3,5m Ø60mm CYLINDRICAL POLE WITH BASE

Suitable for installation to a planted root flange through a base plate in steel S355JO Footstall dimension can be calculated according to your country norms and ground properties.

The grade of steel used is S235JR (Fe360B) with material characteristics as per normative UNI EN 10025;

The surface protection treatment is done through hot dip galvanization.

S.2845
H 4,5m Ø76mm CYLINDRICAL POLE WITH BASE

Suitable for installation to a planted root flange through a base plate in steel S355JO Footstall dimension can be calculated according to your country norms and ground properties.

The grade of steel used is S235JR (Fe360B) with material characteristics as per normative UNI EN 10025;

The surface protection treatment is done through hot dip galvanization.

Including inspection door, terminal cable block and fuse.

S.1758
FLANGE FOR POLE 60/76mm INSTALLATION

Die-cast aluminium flange suitable only for Ø60mm/ Ø76mm poles.

S.1768
STAKE IN POLYPROPYLENE

Colour: black (code 09)
Total length =300 mm

S.1762
NARROW BEAM FILTER 10° for PIVOT 7LED

Suitable for PIVOT 7LED 230V / 850mA To install inside the fitting.

S.1763
LARGE BEAM FILTER 60° for PIVOT 7LED

Suitable for PIVOT 7LED 230V / 850mA To install inside the fitting.

S.1764
ELLIPTICAL BEAM FILTER 60°x10° for PIVOT 7LED

Suitable for PIVOT 7LED 230V / 850mA To install inside the fitting.

S.5529
1 WAY GEL CONNECTOR

For round cables up to 3x1.5 mm², diameter min. 5.5 mm / max. 10 mm For flat cables 2x3 mm IP68 Dimensions: diameter 23 mm, length 70 mm

S.2849
PLANTED ROOT for CYLINDRICAL POLE S.2801, S.2813, S.2843, S.2845

C= 200mm, D=200mm E=Ø80mm, h=460mm, h1=90mm and bolts in galvanized steel with M16 threads. Suggested reinforced concrete footstall dimension **: A = 0.7 m B = 0.7 m
**Footstall dimension can be calculated according to your country norms and ground properties.
