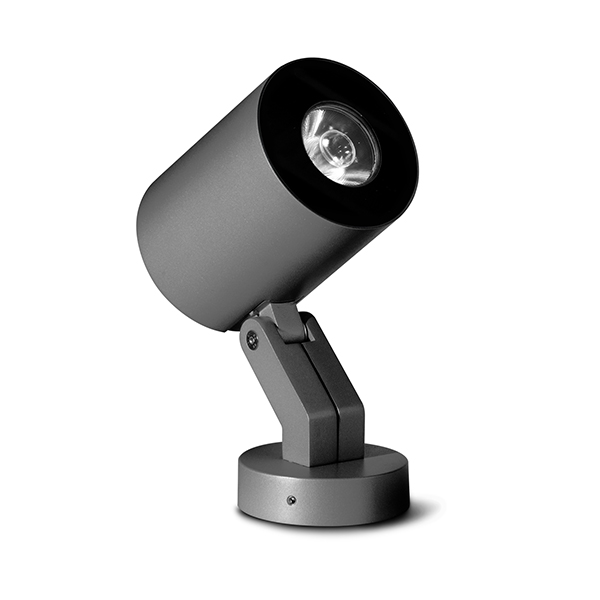

LUMINAIRE TYPE
Projector. IP rating IP 66

MATERIAL CHARACTERISTICS
Die-cast EN AB-47100 aluminium housing with high corrosion resistance. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Silicone gaskets. Painting Process : 3 Step Process
1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 08

LIGHTING PERFORMANCE
LensVectorTM optic technology for digital control of the light beam from 10° to 50°. The Digital Beam technology allows also the control of more light fittings according to the desired scenario to easily recall preset light scenes and transform an outdoor environment adapting it to needs and moments. Clear toughened glass. LOR --

INSTALLATION AND MAINTENANCE
The tempered front glass diffuser is fixed externally to the fitting through silicon resin, perfectly flush with the front ring. Water and dirt deposits that can disturb the lighting performance of the projector can easily flow away.

WIRING
Luminaire supplied with neoprene 0,5m H05RN-F cable and connector. To ensure optimal installation, it is recommended to use the 3-way Connector (type S.5507) for the electrical connection between the DALI signal cable and the 48V Power Supply to the Digital Beam luminaire.
Isolation: CLASS III . Available colours: Aluminium grey (cod.14), Anthracite grey (cod.24). Weight: 4.1239 Kg Glow Wire test: --
LED module included

REGISTERED DESIGN

This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user.

This product contains a light source of energy efficiency class (EPREL - European Product Registry for Energy Labelling): F.

LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 70.000 hours Ta 25°C, min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.
