LUMINAIRE TYPE
System suspension luminaire. IP rating IP 65

MATERIAL CHARACTERISTICS
Aluminium die cast housing in EN AB-44100 (low copper content) with high resistance against corrosion. Stone wash surface treatment prior to painting process. Stainless steel Allen screws with insulating treatment against galvanic corrosion. Pre treated Silicone Gaskets. Painting Process : 3 Step Process
1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 07

LIGHTING PERFORMANCE
Possibility of changing the beam angle even once installed: the transition from a concentrated Spot 20° beam to a large Flood 40° beam, takes place smoothly and gradually, offering maximum comfort. The modification takes place through a manual rotation of the front bezel. Clear toughened glass 4 mm thick.

INSTALLATION AND MAINTENANCE
Thanks to its steel wire ropes and its multiple anchorage points, it allows customised configurations for every context. The anchoring can be done to the wall or ceiling using roses (for support or electrification) or, in the absence of anchoring surfaces, also via a support pole to be buried in the concrete or using a base with a counterweight container.

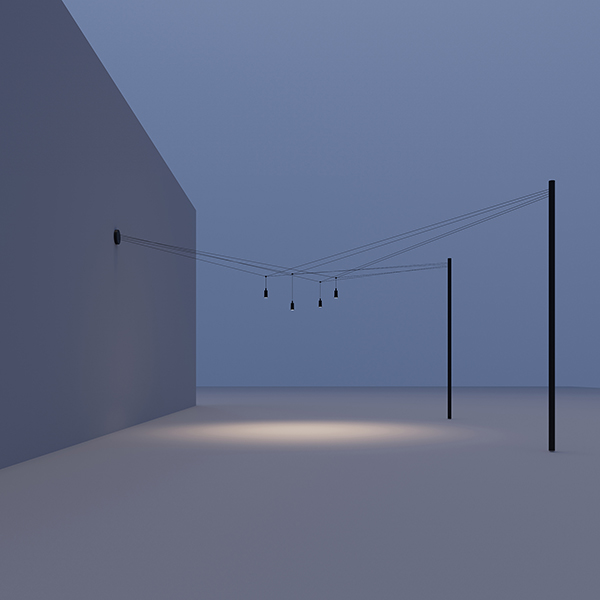

Pendant lighting system composed by: N° 4 Flower Zoom 60 Comfort (Requires constant voltage remote power supply 24Vdc) with 15m of aramid fiber reinforced electrical cable; N° 4 Braided steel rope coated in black PA12, length 15m; N° 01 Support or Electrification Ceiling Rose diam. 250mm, H 46mm made of painted aluminum, allows the fixing of the clamp and metal rope to the wall or the electrical cable; N°02 Support Pole diam. 76 mm Height 3500 mm. Requires N°02 mandatory accessories to be chosen from: 1) Base for Support diam 500mm and Counterweight Container 350mm, H 600mm To ensure stability in the absence of ground fixings, the container must hold two sandbags, each weighing 25 kg; 2) Flange to be buried in concrete Height 1600 mm (H 800 mm above ground).

WIRING
The electrical cables can be connected to a rose or a pole wired to the power line, while the support ropes are anchored to the other two non-electrified points (rose + pole or two poles). Isolation: CLASS III . Available colours: White (cod.01), Black (cod.09). Weight: 80.594 Kg Glow Wire test: --
LED module included

AIR-LIGHTING PATENTED and REGISTERED DESIGN

This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user.

This product contains a light source of energy efficiency class (EPREL - European Product Registry for Energy Labelling): F.

LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 70.000 hours Ta 25°C, min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

DARK SKY FRIENDLY
This luminaire is designed according to the principles of light pollution reduction: zero light emission above 90°, color temperature 2700K/3000K, and full shielding. It is not a DarkSky Approved certified product, but it complies with the main criteria of the International Dark-Sky Association (IDA).
