dimensions

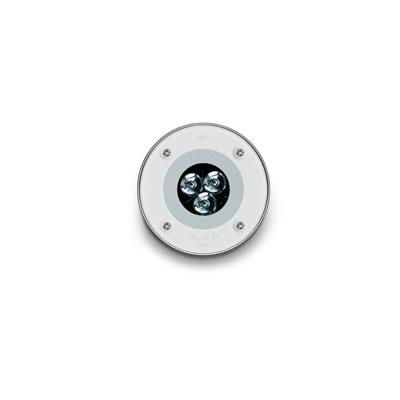

MINIPLANO
SEMIACID - ETCHED GLASS
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.5430N 9° 6W 353lm LED 4000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) TV
S.5430W 9° 6W 327lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) TV
S.5430H 9° 6W 310lm LED 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) TV
S.5438N 22° 6W 355lm LED 4000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) TV
S.5438W 22° 6W 329lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) TV
S.5438H 22° 6W 312lm LED 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) TV
Beam lenses available on request with no surcharge: 34°
dimensions

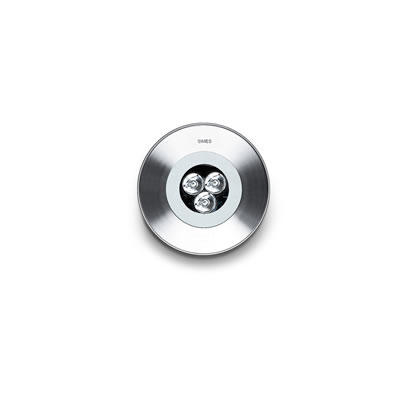

MINIPLANO STAINLESS-STEEL
SEMIACID - ETCHED GLASS
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.5770N 9° 6W 353lm LED 4000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .19
S.5770W 9° 6W 327lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .19
S.5770H 9° 6W 310lm LED 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .19
S.5778N 22° 6W 355lm LED 4000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .19
S.5778W 22° 6W 329lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .19
S.5778H 22° 6W 312lm LED 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .19
Beam lenses available on request with no surcharge: 34°
dimensions

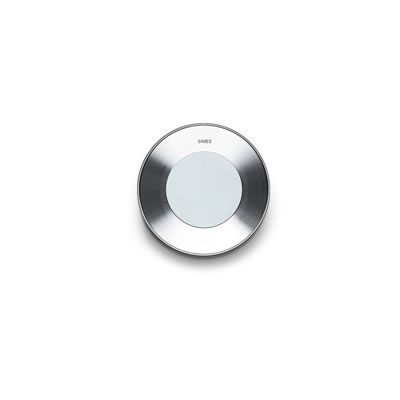

MINIPLANO STAINLESS-STEEL
ACID - ETCHED GLASS
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.5774N 90° 3W 38lm LED 4000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .19
S.5774W 90° 3W 35lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .19
S.5774H 90° 3W 33lm LED 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .19
dimensions

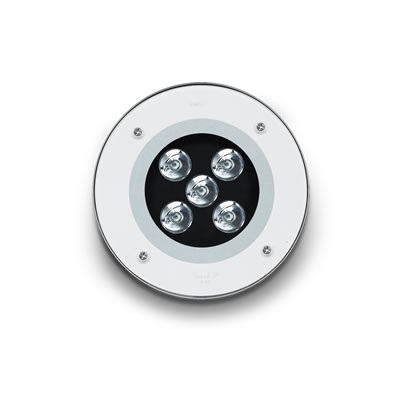

PLANO
SEMIACID - ETCHED GLASS
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.5455N 8° 9.1W 637lm LED 4000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) TV
S.5455W 8° 9.1W 590lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) TV
S.5455H 8° 9.1W 560lm LED 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) TV
S.5444N 28° 9.1W 624lm LED 4000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) TV
S.5444W 28° 9.1W 578lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) TV
S.5444H 28° 9.1W 549lm LED 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) TV
Beam lenses available on request with no surcharge: 38°, 58°, 10°x44°
dimensions

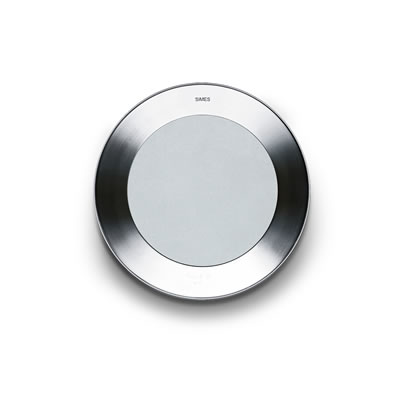

PLANO STAINLESS-STEEL
ACID - ETCHED GLASS
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.5781N 90° 10.1W 339lm LED 4000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .19
S.5781W 90° 10.1W 317lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .19
S.5781H 90° 10.1W 301lm LED 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .19
dimensions

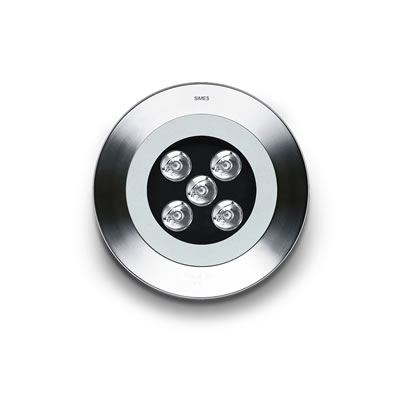

PLANO STAINLESS-STEEL
SEMIACID - ETCHED GLASS
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.5785N 8° 9.1W 637lm LED 4000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .19
S.5785W 8° 9.1W 590lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .19
S.5785H 8° 9.1W 560lm LED 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .19
S.5784N 28° 9.1W 624lm LED 4000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .19
S.5784W 28° 9.1W 578lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .19
S.5784H 28° 9.1W 549lm LED 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .19
Beam lenses available on request with no surcharge: 38°, 58°, 10°x44°
dimensions

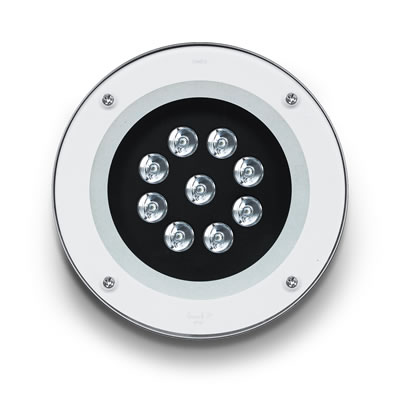

MEGAPLANO
SEMIACID - ETCHED GLASS LED
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.5461N 8° 10.5W 819lm LED 4000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) TV
S.5461W 8° 10.5W 758lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) TV
S.5461H 8° 10.5W 720lm LED 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) TV
S.5468N 28° 10.5W 813lm LED 4000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) TV
S.5468W 28° 10.5W 753lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) TV
S.5468H 28° 10.5W 715lm LED 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) TV
Beam lenses available on request with no surcharge: 38°, 58°, 10°x44°
dimensions

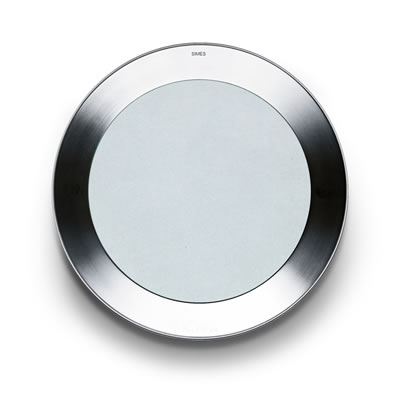

MEGAPLANO STAINLESS-STEEL
ACID - ETCHED GLASS
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.5790N 90° 11.1W 407lm LED 4000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .19
S.5790W 90° 11.1W 377lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .19
S.5790H 90° 11.1W 358lm LED 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .19
dimensions

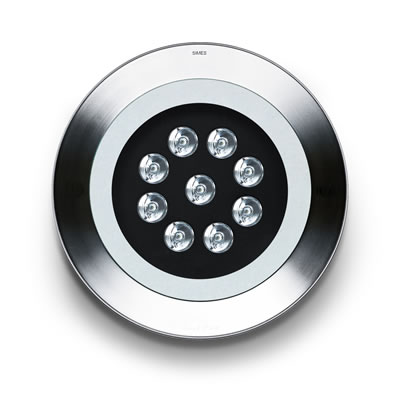

MEGAPLANO STAINLESS-STEEL
SEMIACID - ETCHED GLASS LED
Code Beam Optic Power Rated luminaire luminous flux Light source type Power supply Dimming type Colour standard
S.5791N 8° 10.5W 819lm LED 4000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .19
S.5791W 8° 10.5W 758lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .19
S.5791H 8° 10.5W 720lm LED 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .19
S.5798N 28° 10.5W 813lm LED 4000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .19
S.5798W 28° 10.5W 753lm LED 3000K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .19
S.5798H 28° 10.5W 715lm LED 2700K CRI 90 220-240Vac NOT DIMMABLE (ON-OFF) .19
Beam lenses available on request with no surcharge: 38°, 58°, 10°x44°
