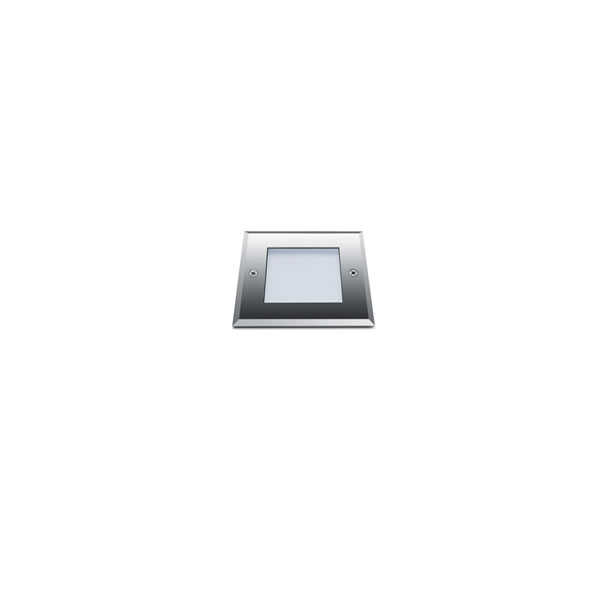

LUMINAIRE TYPE
Inground walk over fitting. Recessing depth 120 mm. IP rating IP 65 IP67

MATERIAL CHARACTERISTICS
"Copper Free" Aluminium die cast housing in EN AB-44100 with high resistance against corrosion. Stone wash surface treatment prior to painting process. 2 mm thick front trim in Stainless Steel - Grade AISI 316L with 2,5-3% molybdenum content. Steel screws treated with an advanced anticorrosive coating. Pre treated Silicone Gaskets. Extra-resistant Painting Process:
C5 coating (according to UNI EN ISO 9223:2012), extra-resistant, with a thickness between 80 and 120 microns depending on the colour finish. Suitable for applications in environments with high humidity and/or marine exposure. Mechanical resistance IK 09 Maximum load capacity 510 Kg

LIGHTING PERFORMANCE
Sophisticatd optical systems able to considerably reduce glare thanks to the retracted position of the LED. Toughened acid-etched glass 8mm thick. Lamp fixed position. LOR --

LOW SURFACE TEMPERATURE
Surface temperature of glass 37°C (Ta 25°C)

RECESSING BOX
Polypropylene recessing box with cable entry on all 4 sides also allows: 1) Easy wiring; 2) Cable management for IP67 fast connector; 3) Easy access to the fitting for maintenance purposes.

WIRING
Supply 0.5m cable section type H07RN-F secured and sealed with B component epoxy resin. Gel connector IP68 supplied as standard for single cable connection. Connector housed inside the recessing box. Isolation: CLASS I . Available colours: Stainless steel (cod.19). Weight: 0.7328 Kg Glow Wire test: 960°C
LED module included

This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user.

This product contains a light source of energy efficiency class (EPREL - European Product Registry for Energy Labelling): F.

LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 70.000 hours Ta 25°C, min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

ELECTRONIC EQUIPMENT SENSITIVE TO OVERVOLTAGE.
We recommend installing surge protection devices "SPD" in the electrical system. Protection devices prevent the intensity of these phenomena’s, protecting the appliances from the risk of being damaged and extending the lifespan. Outdoor luminaires are subject to all types of permanent, temporary, or transient electrical disturbances. Such disturbances can create permanent damage or failure affecting its performance and durability. The surge protection device (supplied by SIMES) is utilized to limit the destructive effect of these phenomena. We suggest that each luminaire must be connected to one protection device at not more than 10m away. For correct coordination of the protections, a surge protection device must also be provided inside the electrical panel of the system (the selection of this device must be carried out from the electrical designer and is not supplied by SIMES).

WARRANTY
All items produced from 01/01/2026 onwards are covered by a 5 (five)-year warranty against manufacturing and conformity defects, in accordance with the terms and limits set out in the manufacturer’s official documentation. For full details, exclusions and warranty activation procedures, please refer to the following link: www.simes.it/warranty
